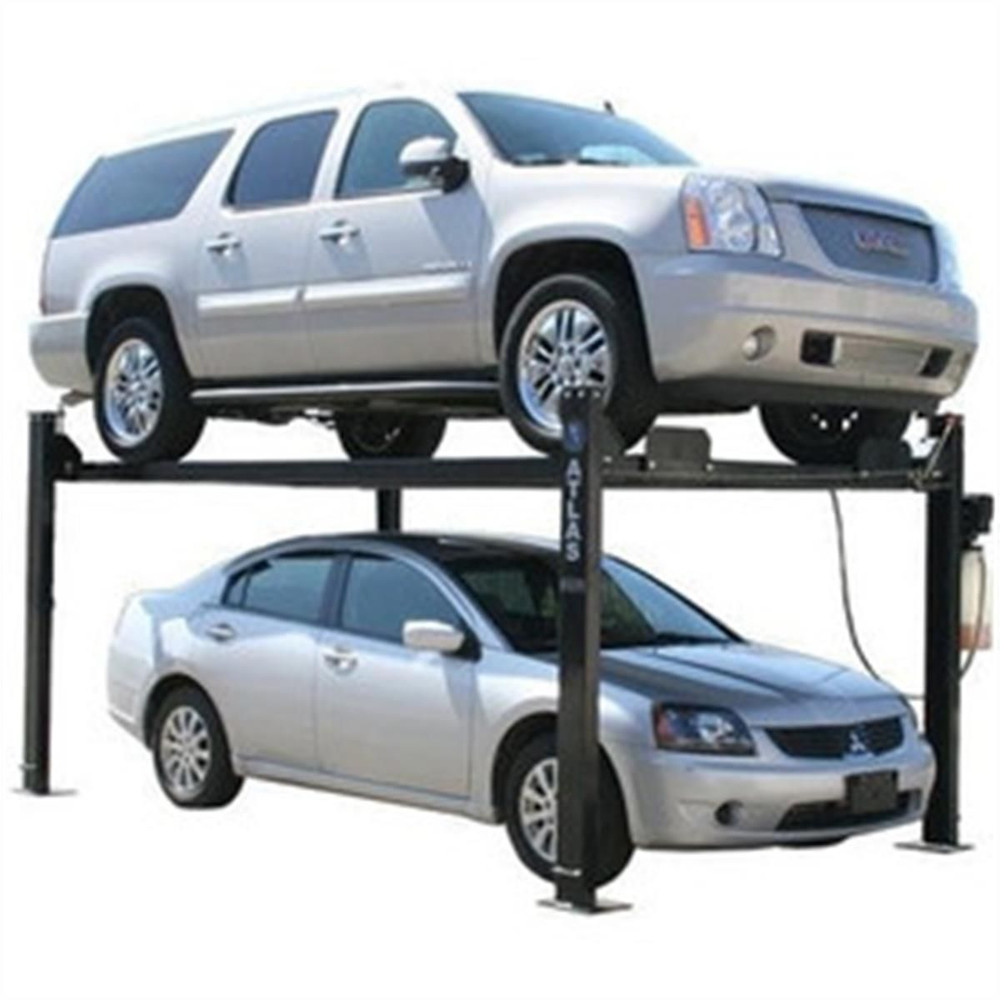

Atlas Garage PRO8000 Portable Hobbyist 8,000 lb. Capacity 4-Post Lift

Features and Benefits: 8,000 lb. Capacity Free Standing/Portable Design Diamond Plated Runways Single-Point Lock Release Lock Ladder Design Double Lock Safety System Caster Kit With Polyurethane Wheels Included Steel Approach Ramps Included Steel Jack Tray Included 4 Plastic Drip Trays Included 4 Wheel Stops Included 2 Rubber Wheel Chocks Included Perfect For Storing Or Working On Vehicles 110volt Electric Operation (30 AMP BREAKER REQUIRED) Shipping Weight 1,800 lbs. 2 yr Structural ‐ 1 yr Hydraulic Warranty ‐ Parts Only This part number FREIGHT PREPAID Atlas® Garage PRO8000 Specifications Capacity 8,000 lb. Lifting Height To Top Of Runway 72″ (6′) Clearance Under Runways 67 (5′ 7″) Height Of Columns 83″ (6′ 11″) Overall Width (Without Motor) 104 1/2″ (8′ 8 1/2″) Overall Width (With Motor) 115″ (9′ 7″) Overall Length With Approach Ramp 206 3/4″ (17′ 2 3/4″) Approach Ramp 37″ (3′ 1″) Runway Width 21 1/2″ (w/ Rails) or 18 3/4″ (Driving Surface) Runway Length 165 3/4″ (13′ 9 3/4″) Runway Thickness 4 1/2″ Width Between Runways 37″ (3′ 1″) Width Between Runway Rails 31 1/2″ (2′ 7 1/2″) Outside Runway To Outside Runway 74 5/8″ (6′ 2 5/8″) Clearance Between Columns 94 1/2″ (7′ 10 1/2″) Length Between Columns 157 1/2″ (13′ 1 1/2″) Maximum Wheel Base 153 1/2″ (12′ 9 1/2″) Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2″ (6′ 8 1/2″) Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED Shipping Weight 1,800 lb.
