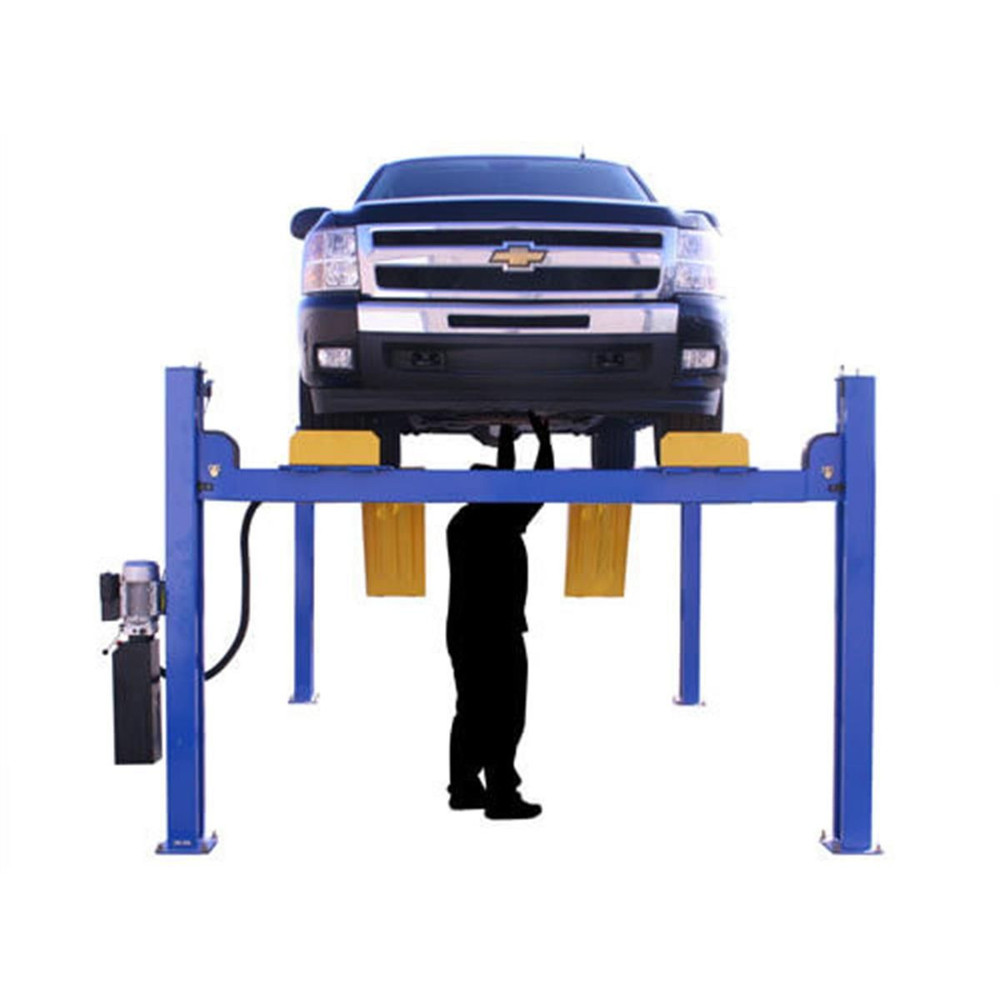

Atlas 414A 14,000 LB 4-Post Alignment Lift w/Turntables

Features and Benefits: 14,000 lb. Capacity Heavy Duty, Commercial Grade Extra Tall, Extra Wide, Extra Long Built-in Slip Plates & Alignment Turntables Included Multiple Positions for Turntable Placement Runway Covers Included (for when Turntables are Removed) Air Operated Single Point Lock Release (External Air Supply Required) Lock Ladder Design Double Lock Safety system Powder Coat Finish Steel Approach Ramps Included Additional Drive-off Ramps Available (Sold Separately) Runway Extensions Available (Sold Separately) Mounting Hardware Included 220volt/1phase Electric Operation (Requires 30amp Breaker) Shipping Weight 3,200 lbs. 5 yr Structural – 2 yr Hydraulic – Parts Only Warranty This number FREIGHT PREPAID Atlas® ATTD-414A Specifications Capacity 14,000 lb. Lifting Height 80″ (6′ 8″) Overall Width Of Columns (Without Motor) 130 7/8″ (10′ 10 7/8″) Overall Width Of Columns (With Motor) 138 7/8″ (11′ 6 7/8″) Overall Length With Approach Ramp 255″ (21′ 3″) Length Between Columns 197 1/4″ (16′ 5 1/4″) Runway Length 208 5/8″ (17′ 4 5/8″) Runway Width 20″ Thickness Of Runway 8 3/4″ Width Between Runways 46 7/8″ (w/ Rail 44 3/8″) Outside Runway To Outside Runway 86 7/8″ (7′ 2 7/8″) Clearance Under Runways 71 1/4″ (5′ 11 1/4″) Clearance Between Columns 116″ (9′ 8″) Height Of Columns 91 1/8″ (7′ 7 1/8″) Maximum Wheel Base 197″ (16′ 5″) Drive Thru 102 1/8″ (8′ 6 1/8″) Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 3,200 LBS. Requires a minimum of 6″ of concrete with a 3000 psi. rating
