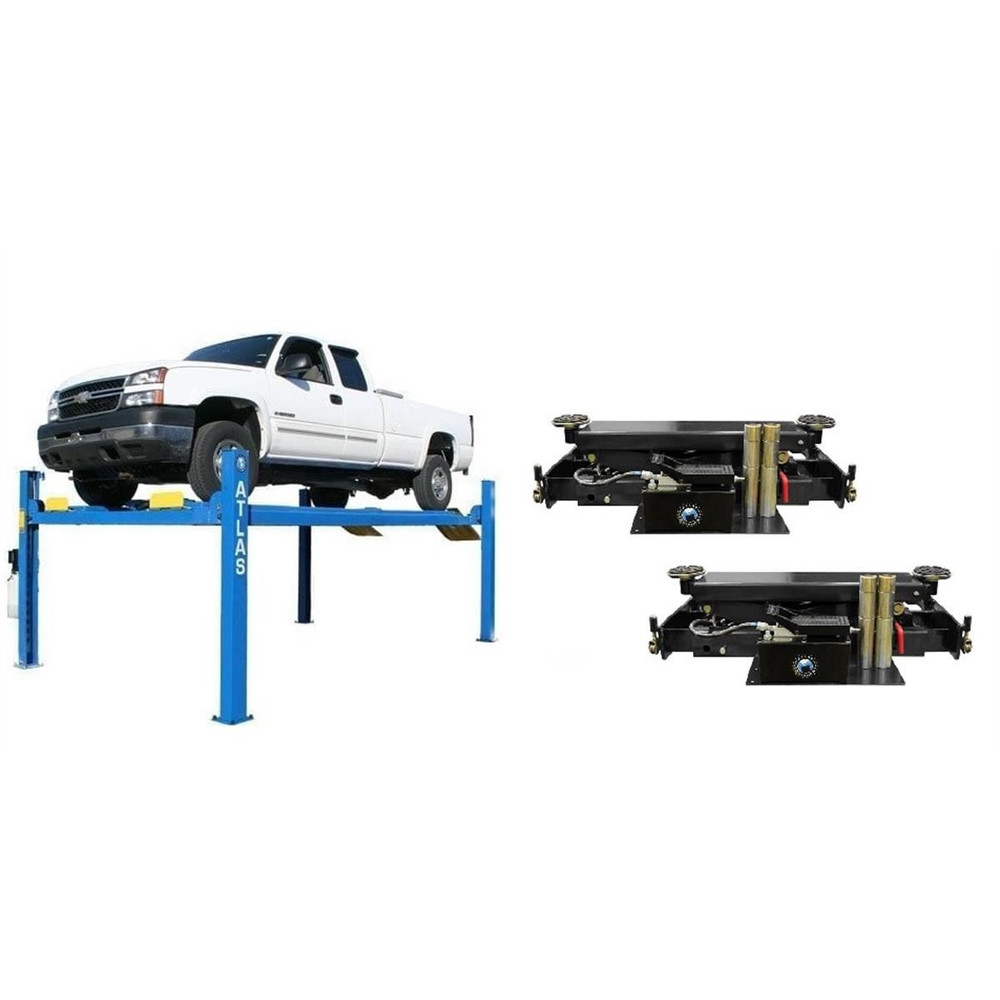

Atlas 414 14,000 lb. 4-Post Lift RJ8 Rolling Jacks Combo

Features and Benefits: Combo Package includes 414 14,000 lb. Capacity lift & two RJ8 rolling jacks Heavy Duty, Commercial Grade Lift is Extra Tall, Extra Wide & Extra Long Lift has Diamond Plated Runways Lift has Air Operated Single Point Lock Release (External Air Supply Required – NOT INCLUDED) Steel Approach Ramps Included Additional Drive off Ramps Available (Sold Separately) Runway Extensions Available (Sold Separately) Mounting Hardware Included Jacks are Air Over Hydraulic operated Truck Adapter Set for each Jack Included This part number FREIGHT PREPAID Atlas® ATTD-414 Specifications Capacity 14,000 lb. Lifting Height 80″ (6′ 8″) Overall Width Of Columns (Without Motor) 130 7/8″ (10′ 10 7/8″) Overall Width Of Columns (With Motor) 138 7/8″ (11′ 6 7/8″) Overall Length With Approach Ramp 255″ (21′ 3″) Length Between Columns 197 1/4″ (16′ 5 1/4″) Runway Length 208 5/8″ (17′ 4 5/8″) Runway Width 20″ Thickness Of Runway 8 3/4″ Width Between Runways 46 7/8″ (w/ Rail 44 3/8″) Outside Runway To Outside Runway 86 7/8″ (7′ 2 7/8″) Clearance Under Runways 71 1/4″ (5′ 11 1/4″) Clearance Between Columns 116″ (9′ 8″) Height Of Columns 91 1/8″ (7′ 7 1/8″) Maximum Wheel Base 197″ (16′ 5″) Drive Thru 102 1/8″ (8′ 6 1/8″) Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 3,100 LBS. Requires a minimum of 6″ of concrete with a 3000 psi. rating   Atlas® RJ8000 Specifications Maximum Capacity 8,000 lb. Maximum Width 66 1/2″ (5′ 6 1/2″) Minimum Width 40″ (3′ 4″) Distance Between Runway Capability 34 1/2″-55″ Maximum Lifting Height (With Adapters) 30″ Air Requirement 70-115 PSI (External Air Supply Required – NOT INCLUDED) Shipping Weight 390 lbs. Adapter Heights 2 Each 2″, 3″ Arm Hole/Adapter Peg Size 1.5″
