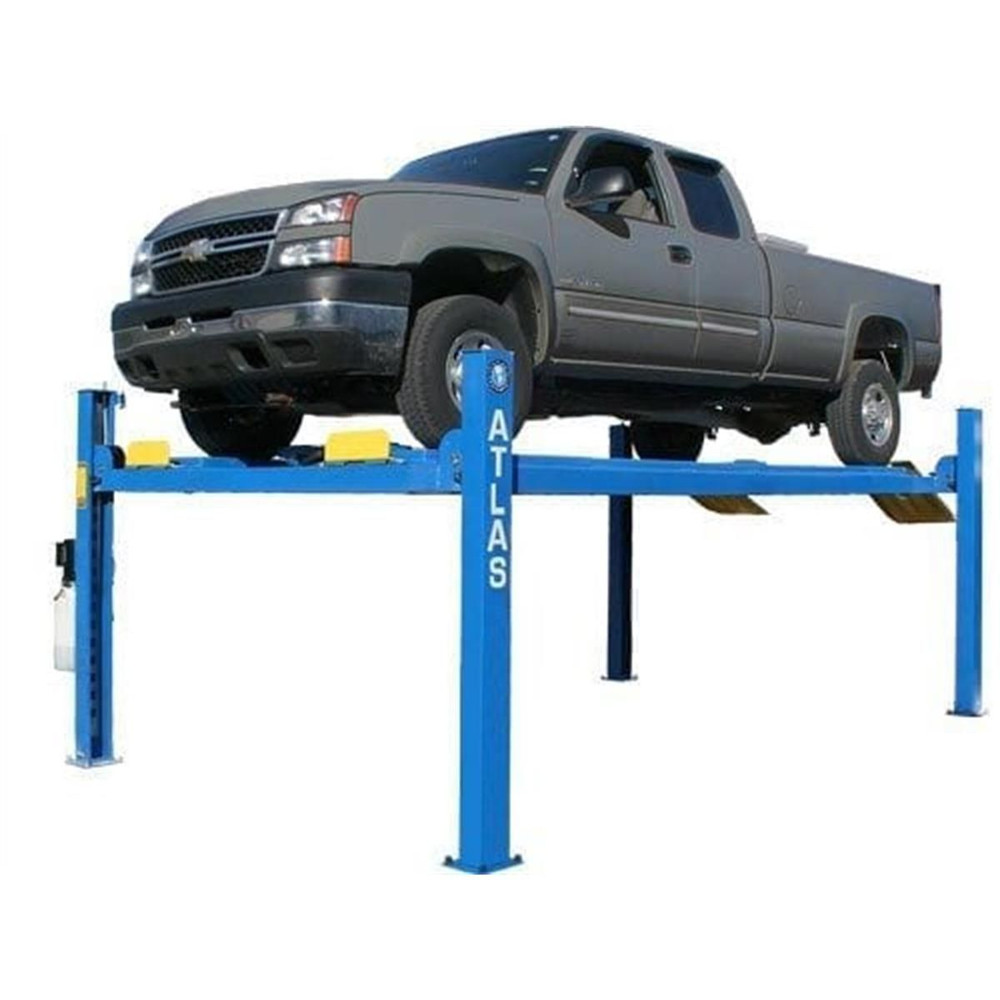

Atlas 412 Commercial Grade 12,000 lb. 4-Post Lift

Features and Benefits: 12,000 lb. Capacity Heavy Duty, Commercial Grade Extra Tall, Extra Wide & Extra Long Diamond Plated Runways Air Operated Single Point Lock Release (External Air Supply Required – NOT INCLUDED) Lock Ladder Design Double Lock Safety System Powder Coat Finish Steel Approach Ramps Included Additional Drive off Ramps Available (Sold Separately) Runway Extensions Available (Sold Separately) Mounting Hardware Included 220volt/1phase Electric Operation (Requires a 30amp Breaker) Shipping Weight: 2,800 lbs. 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only This part number FREIGHT PREPAID Atlas® ATTD-412 Specifications Capacity 12,000 lb. Lifting Height 77 3/4″ (6′ 5 3/4″) Overall Width Of Columns (Without Motor) 126 1/4″ (10′ 6 1/4″) Overall Width Of Columns (With Motor) 135 1/4″ (11′ 3 1/4″) Overall Length With Approach Ramp 236 1/2″ (19′ 8 1/2″) Length Between Columns 183 1/4″ (15′ 3 1/4″) Runway Length 194 1/2″ (16′ 2 1/2″) Runway Width 20″ Thickness Of Runway 7 1/2″ Width Between Runways 43 1/4″ (w/ Rail 39 3/4″) Outside Runway To Outside Runway 83 1/4″ (6′ 11 1/4″) Clearance Under Runways 70 1/4″ (5′ 10 1/4″) Clearance Between Columns 112 5/8″ (9′ 4 5/8″) Height Of Columns 89 3/4″ (7′ 5 3/4″) Maximum Wheel Base 185″ (15′ 5″) Drive Thru 98″ (8′ 2″) Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended) Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED) Shipping Weight 2,800 LBS. Requires a minimum of 6″ of concrete with a 3000 psi. rating
